READERS

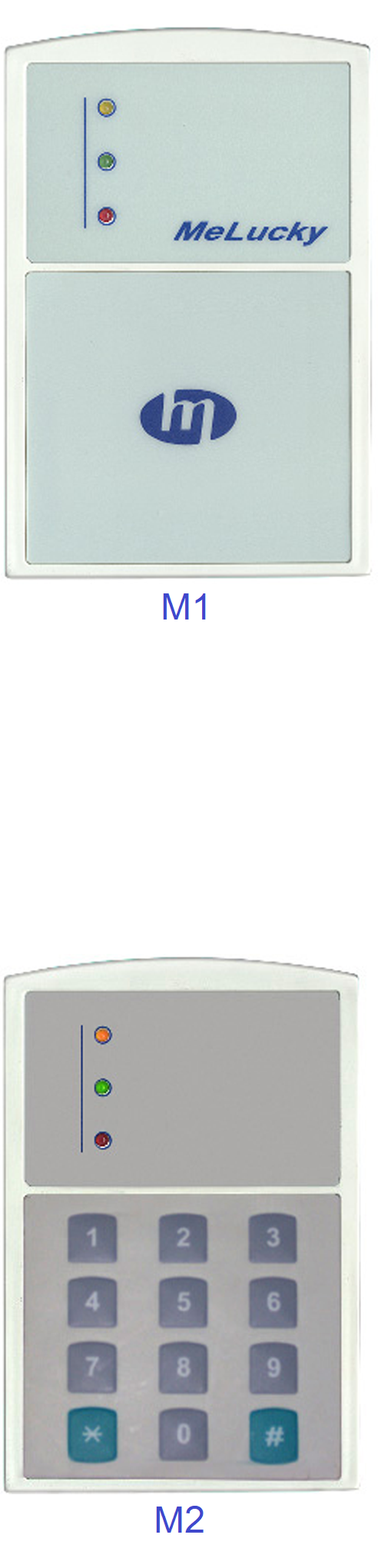

M1/M2 Reader
Features
- Beautiful appearance, suitable for various occasions
- Various card types such as Mifare, EM, HID, TI
- The outer case has the functions of dustproof, waterproof, moistureproof, rustproof and shockproof
- Small size, light weight and low energy consumption
- Fast response, anti-interference, stable performance
- Optional tamper-evident detection point, which will generate a warning message in the event of man-made damage
- Buzzer prompt and LED status indication
- Standard 86 box mounting holes, convenient for construction and maintenance
Technical Parameter
Work temperature －30℃～60℃
Air humidity ≤95％
Storage temperature －40℃～70℃
Rated voltage 12V DC
Working current Typical 60mA/Maximum 120mA
Sensing distance 0～100mm
Operation instructions Local buzzer and LED indication
Data format WIEGAND
Protection class IP68
Size 127×82×15mm
Selection Reference
Model Card Type Bits
ML470-34 Mifare 34
ML490-34 EM/MeLucky 34
ML471-36 TI 34
ML492-10 HID 26
Model Card Type Bits
ML470-35 Mifare 34
ML490-35 EM/MeLucky 34
ML471-37 TI 34
ML492-20 HID 26

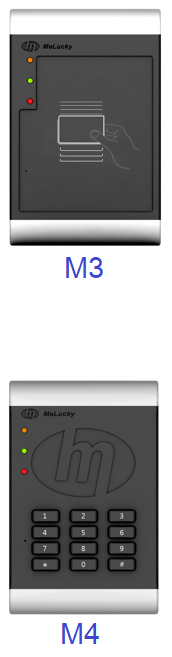

M3/M4 Reader
Features
- Beautiful appearance, suitable for various occasions
- Various card types such as Mifare, EM, HID, TI
- The outer case has the functions of dustproof, moistureproof, rustproof and shockproof
- Small size, light weight and low energy consumption
- Fast response, anti-interference, stable performance
- Buzzer prompt and LED status indication
- Standard 86 box mounting holes, convenient for construction and maintenance
Techinical Parameter
- Work temperature -30℃~60℃
- Air humidity ≤95%
- Storage temperature -40℃~70℃
- Rated voltage 12V DC
- Work current Typical 60mA／Maximun120mA
- Sensing distance 0~100mm
- Operation instructions Local buzzer and LED indication
- Data format WIEGAND
- Protection class IP64
- Size 138x88x27mm
M3 Series Models
Model Card Type Bits
ML4703-44 Mifare 44
ML4903-44 EM／MeLucky 44
ML4713-44 TI 44
ML4923-44 HID 44
M4 Series Models
Model Card Type Bits
ML4704-44 Mifare 44
ML4904-44 EM／MeLucky 44
ML4714-44 TI 44
ML4924-44 HID 44
——————————————————————————–
Note: Other bits need to be ordered separately.

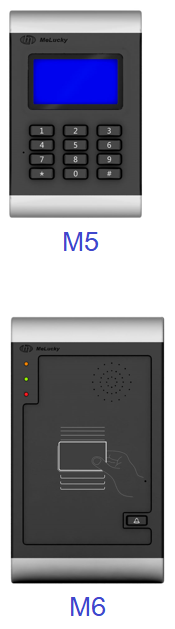

M5/M6 Reader
Features
- Beautiful appearance, suitable for various occasions
- Various card types such as Mifare, EM, HID, TI
- The shell has the functions of dustproof, moistureproof, rustproof and shockproof
- Small size, light weight and low energy consumption
- Fast response, anti-interference, stable performance
- Buzzer prompt and status display
- Standard 86 box mounting holes, convenient for construction and maintenance
- M5 LCD card reader supports Chinese and English color display
- M5 LCD card reader can flexibly set the display content
- M6 intercom card reader comes with doorbell, full duplex call function
Technical Parameter
- Work temperature -30℃~60℃
- Air humidity ≤95%
- Storage temperature -40℃~70℃
- Rated voltage 12V DC
- Work current Typical 60mA／Max 120mA
- Sensing distance 0~100mm
- Data format WIEGAND
- Size M5: 138x88x27mm
M6: 210x120x35mm
M5 Series Models
Model Card Type Bits
ML4705-44 Mifare 44
ML4905-44 EM／MeLucky 44
ML4715-44 TI 44
ML4925-44 HID 44
M6 Series Models
Model Card Type Bits
ML4706-44 Mifare 44
ML4906-44 EM／MeLucky 44
ML4716-44 TI 44
ML4926-44 HID 44
——————————————-
Note: other bits need to be ordered separately.

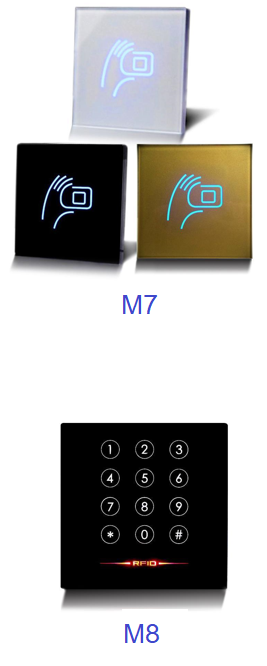

M7/M 8 Reader
Features
- Beautiful appearance, suitable for various occasions
- It can identify various card types such as TypeA, TypeB, EM, CPU card and second-generation ID card at the same time
- Can choose to support mobile phone NFC function or refuse to read NFC copy card
- The outer case has the functions of dustproof, moistureproof, rustproof and shockproof
- Small size, light weight and low energy consumption
- Fast response, anti-interference, stable performance
- Buzzer prompt and LED status indication
- Standard 86 box mounting holes, convenient for construction and maintenance
- Certification: CMA, CE, FCC
Technical Parameter
- Work temperature -30℃~60℃
- Air humidity ≤95%
- Storage temperature -40℃~70℃
- Rated voltage 12V DC
- Work current Typical 60mA／Max 120mA
- Read speed <0.2S
- Communication distance 最大100m
- Sensing distance 0~100mm
- Operate indication Buzzer and LED
- Data format WIEGAND
- Protection class IP68
- Size 86x86x9mm
Model Reference
ML4707-34 without keypad, 34bits
ML4708-34 with display and keypad, 34bits
ML4707-44 without keypad, 44bits
ML4708-44 with display and keypad, 44bits

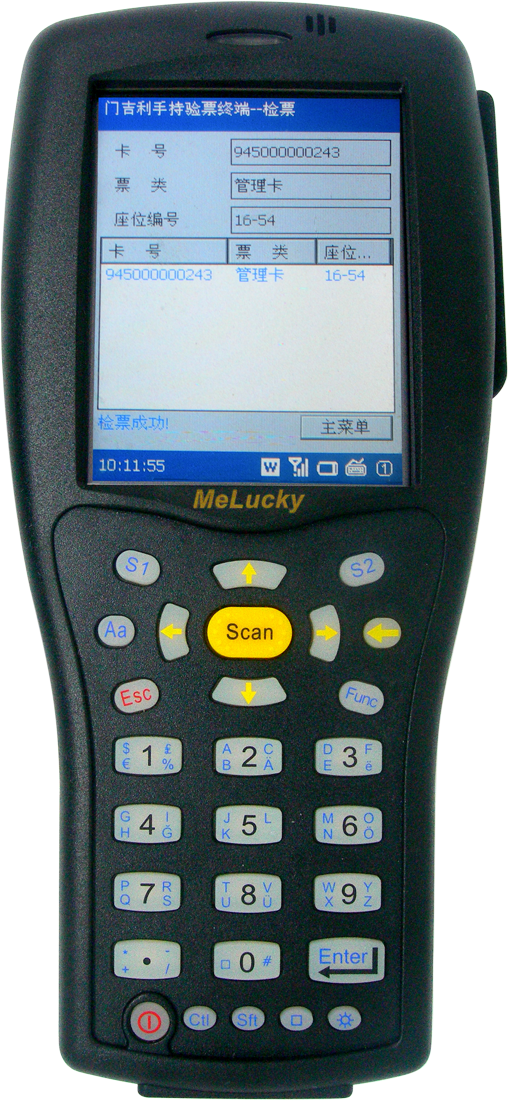

MHH100 Series Wireless Handheld Ticket Validator
Features
- Integrated long-range laser barcode scanner
- Support WiFi, connect with local area network through wireless network
- Handwriting input, support signature capture function
- Industrial grade IP54 hardware design for durability in harsh environments use
- Built-in WLAN antenna
- Wide operating temperature range -10°～50°C
- The fuselage is designed to be shock-proof and anti-fall, and the falling distance is 2 meters without damage
- Integrated design, truly achieve industrial-grade standards and stable performance
Technical Parameter
Model MHH100
Processor 32 bit CPU，400 MHZ
Memory 128MB
Display 3.5in QVGA(240×320 Pixel) Color，
Transflective TFT-LCD, LCD backlight
Function keys 25+1 alphanumeric backlit keyboard, soft keys,
support handwriting input
Standard battery 3.7V 2800mAh/3200mAh Li-ion battery;
Internal backup battery: 17mAh
Built-in wireless IEEE802.11b/g标准
Data collection Barcode scanning, stylus, recording
Audio Built-in microphone and speaker,
mini headphone jack (2.5mm stereo)
Size 190x80x25mm
Weight 400g（with standard battery）
Scan/Decode Rate 100 times/sec
Reading angle 54°，Efficient reading angle 44°
Standards compliant Light Safety, IEC 825, Laser Class I
